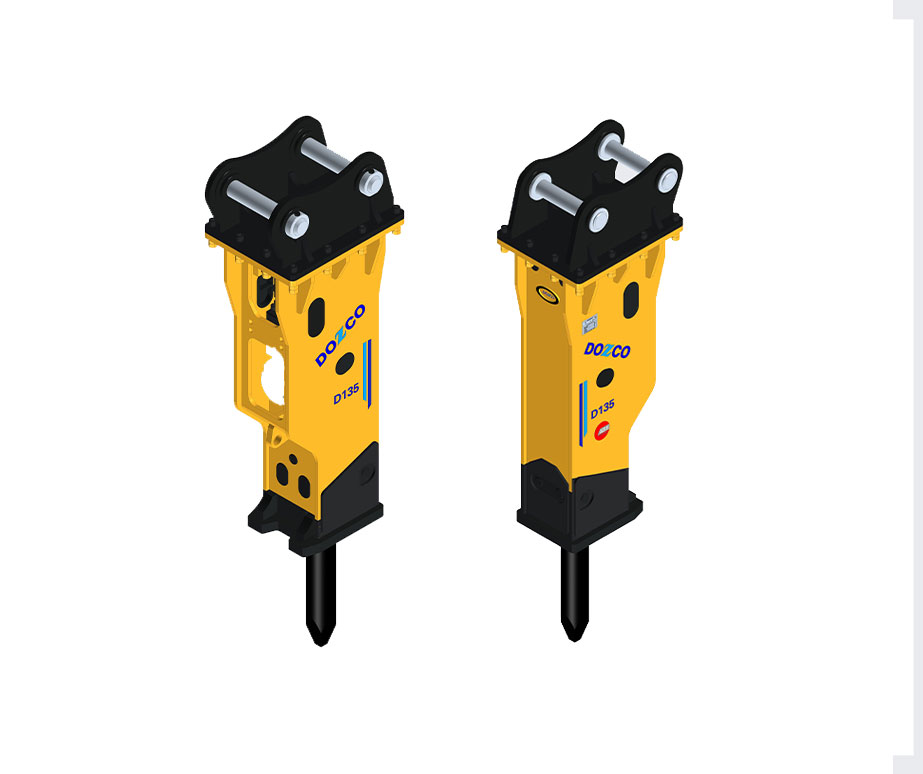

Rock Breaker D135
Operating Weight
1725 Kg
Oil Flow
120 - 180 lpm
Tool Diameter
135 mm
Operating Pressure
160 - 190 bar
Impact Rate
300 - 550 BPM
Return Line Pressure
10 bar
Overview
DOZCO Rock Breaker D135 is a robust attachment engineered for primary/secondary breaking and tunneling. Designed for excavators in the 10-26 tons class, it offers exceptional power and efficiency. With its reliable performance and precise control, the DOZCO Rock Breaker D135 is a trusted choice for demanding rock breaking applications. Whether you’re working on construction projects or involved in tunneling jobs, this attachment delivers superior performance and durability, ensuring efficient and effective rock breaking operations.
Rock Breaker D135 Specifications
| Specifications | Rock Breaker D135 | |
|---|---|---|
| Operating Weight* | Box | 1725 Kg |
| Side | 1651 Kg | |
| Top Split | 1690 Kg | |
| Height (Incl. Tool) | Box | 2666 mm |
| Side | 2368 mm | |
| Top Split | 2714 mm | |
| Tool Diameter | 135 mm | |
| Tool Length | 1200 mm | |
| Optimal Oil Flow | 120 - 180 lpm | |
| Setting Pressure | 220 bar | |
| Operating Pressure | 160 - 190 bar | |
| Return Line Pressure | 10 bar | |
| Impact Rate | 300 - 550 BPM | |
| Bottom Plate Thickness (HB) | 50 mm | |
| Hose | In & Out | |
| 1" | ||
| Control Valve Type | External | |
| Applicable Carrier | 18.0 - 26.0 ton | |
| 2 Stroke Control | Yes | |
| Accumulator | Yes | |
| Auto Greasing | Optional | |
| Anti Blank Firing (ABF) | Yes | |
* The operating weight include the MC+ Body+Tool weight
* The above specifications are subject to change without prior notice for the quality enhancement.
Features at a Glance
- Reliable And Durable Design
- Easy to Maintain
- Easy to Operate
Reliable And Durable Design
- ABF – Prevents idle blows and increase the lifespan of Breaker
- Reinforced Body for greater reliability.
- Newer Accumulator design for higher efficiency.
- Larger Piston Diameter for increased impact energy.
- Improved Power / Weight ratio to maximise Productivity.
- Lower operating cost.
Easy to Maintain
- Maintenance friendly.
- Economical Maintenance.
- Ring Bush – Combined Bush for less maintenance cost and more durable.
- Inspection Window – Easy access for inspection of Through Bolts
Easy to Operate
- User friendly.
- Light, simple, and smooth operation.
- Easy to use, manageable.
- ABF – Prevents idle blows and increase the lifespan of Breaker
- Reinforced Body for greater reliability.
- Newer Accumulator design for higher efficiency.
- Larger Piston Diameter for increased impact energy.
- Improved Power / Weight ratio to maximise Productivity.
- Lower operating cost.
- Maintenance friendly.
- Economical Maintenance.
- Ring Bush – Combined Bush for less maintenance cost and more durable.
- Inspection Window – Easy access for inspection of Through Bolts
- User friendly.
- Light, simple, and smooth operation.
- Easy to use, manageable.
