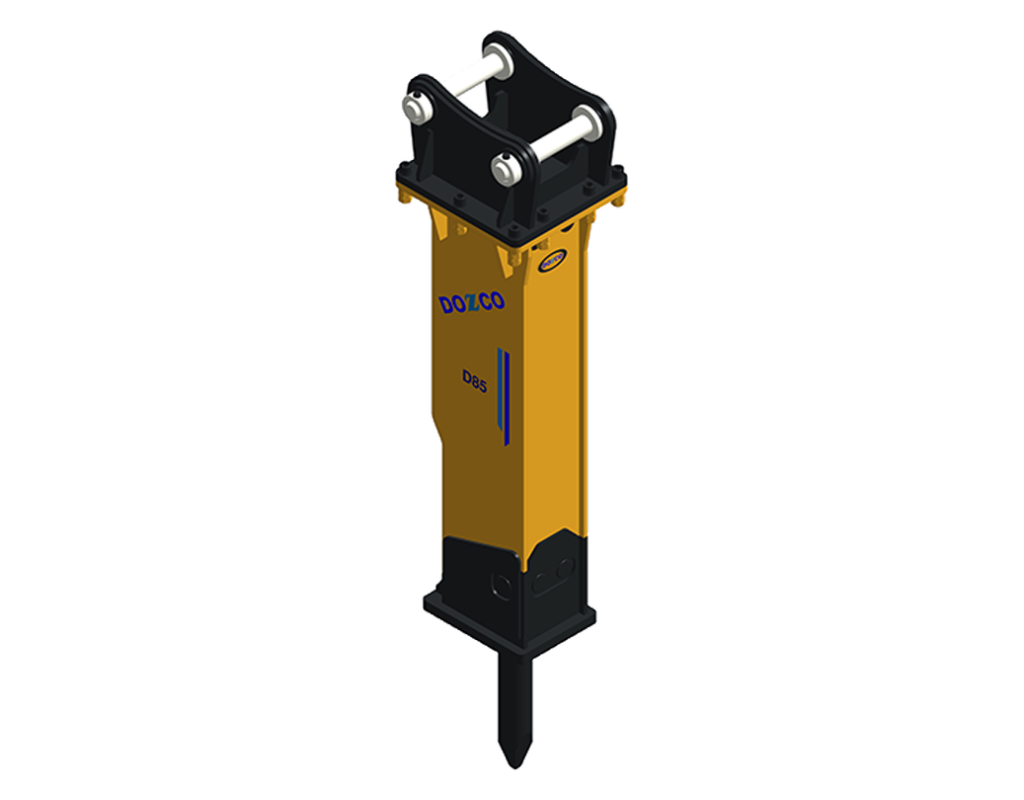

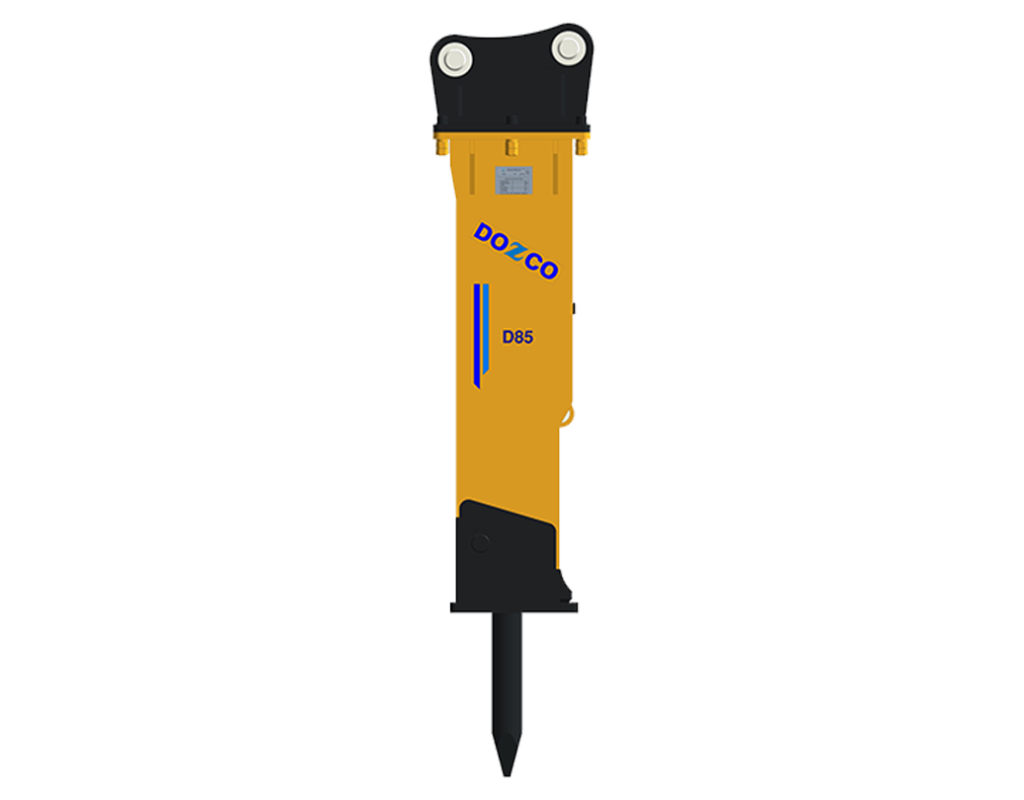

DOZCO D85 Rock Breaker
DOZCO D85 Rock Breaker
- Operating Weight 610 Kg
- Oil Flow 60-100 lpm
- Tool Diameter 85 mm
- Operating Pressure 130-160 bar
- Impact Rate 400-800 BPM
- Return Line Pressure 10 bar
DOZCO D85 Rock Breaker
- Product Overview
Product Overview
Product Overview
DOZCO D85 Rock Breaker is built for heavy-duty applications where power and reliability are critical. Compatible with 6.0 to 9.0 ton excavators, it provides sustained impact energy for hard rock breaking and large-scale demolition work. Anti-Blank Firing technology enhances operational safety and reduces component fatigue. Its robust construction ensures dependable output, reduced downtime, and long-term performance in challenging environments.
| Specifications | Rock Breaker D85 | ||||||
|---|---|---|---|---|---|---|---|
|
|
||||||
| Tool Diameter | 85 mm | ||||||
| Tool Length | 800 mm | ||||||
| Optimal Oil Flow | 60-100 lpm | ||||||
| Setting Pressure | 180 bar | ||||||
| Operating Pressure | 130-160 bar | ||||||
| Return Line Pressure | 10 bar | ||||||
| Impact Rate | 400-800 BPM | ||||||
| Bottom Plate Thickness (HB) | 30 mm | ||||||
| Hose | In & Out – 3/4″ | ||||||
| Control Valve Type | Internal | ||||||
| Applicable Carrier | 6.0-9.0 ton | ||||||
| Auto Greasing | Optional | ||||||
| Anti Blank Firing (ABF) | Yes |
* The operating weight includes the MC + Body + Tool weight
* The above specifications are subject to change without prior notice for quality enhancement.
