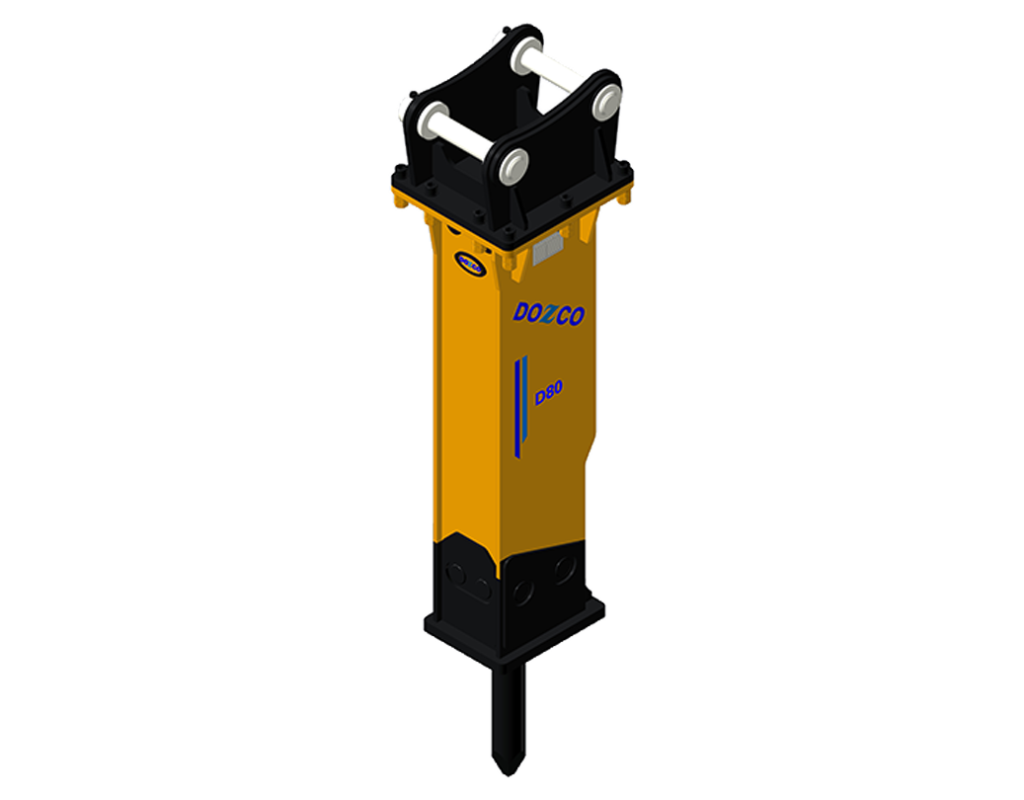

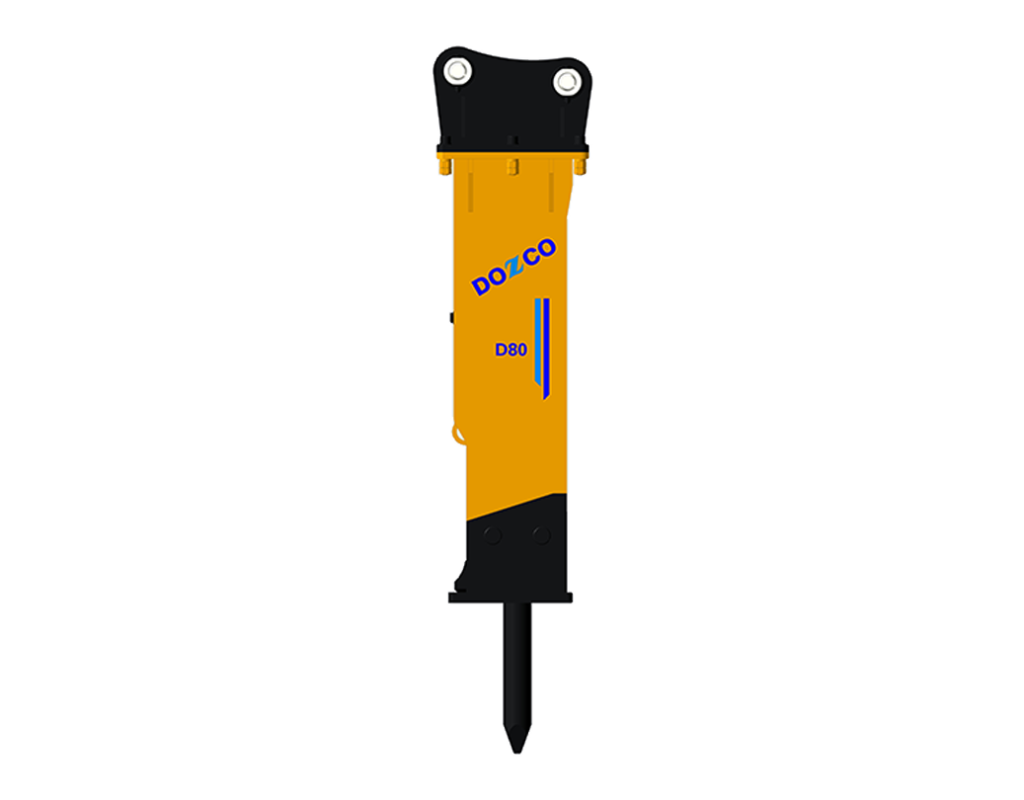

DOZCO D80 Rock Breaker
DOZCO D80 Rock Breaker
- Operating Weight 570 Kg
- Oil Flow 50-90 lpm
- Tool Diameter 80 mm
- Operating Pressure 120-150 bar
- Impact Rate 400-800 BPM
- Return Line Pressure 10 bar
DOZCO D80 Rock Breaker
- Product Overview
Product Overview
Product Overview
DOZCO D80 Rock Breaker is engineered to handle intensive breaking tasks with higher efficiency. Designed for 5.0 to 8.0 ton excavators, it offers balanced impact force and controlled operation for reinforced concrete and tough rock applications. Anti-Blank Firing technology helps reduce internal stress and vibration, improving durability and operator comfort while maintaining stable performance in continuous working conditions.
| Specifications | Rock Breaker D80 | ||||||
|---|---|---|---|---|---|---|---|
|
|
||||||
| Tool Diameter | 80 mm | ||||||
| Tool Length | 800 mm | ||||||
| Optimal Oil Flow | 50-90 lpm | ||||||
| Setting Pressure | 180 bar | ||||||
| Operating Pressure | 120-150 bar | ||||||
| Return Line Pressure | 10 bar | ||||||
| Impact Rate | 400-800 BPM | ||||||
| Bottom Plate Thickness (HB) | 30 mm | ||||||
| Hose | In & Out – 3/4″ | ||||||
| Control Valve Type | Internal | ||||||
| Applicable Carrier | 5.0-8.0 ton | ||||||
| Auto Greasing | Optional | ||||||
| Anti Blank Firing (ABF) | Yes |
* The operating weight includes the MC + Body + Tool weight
* The above specifications are subject to change without prior notice for quality enhancement.
