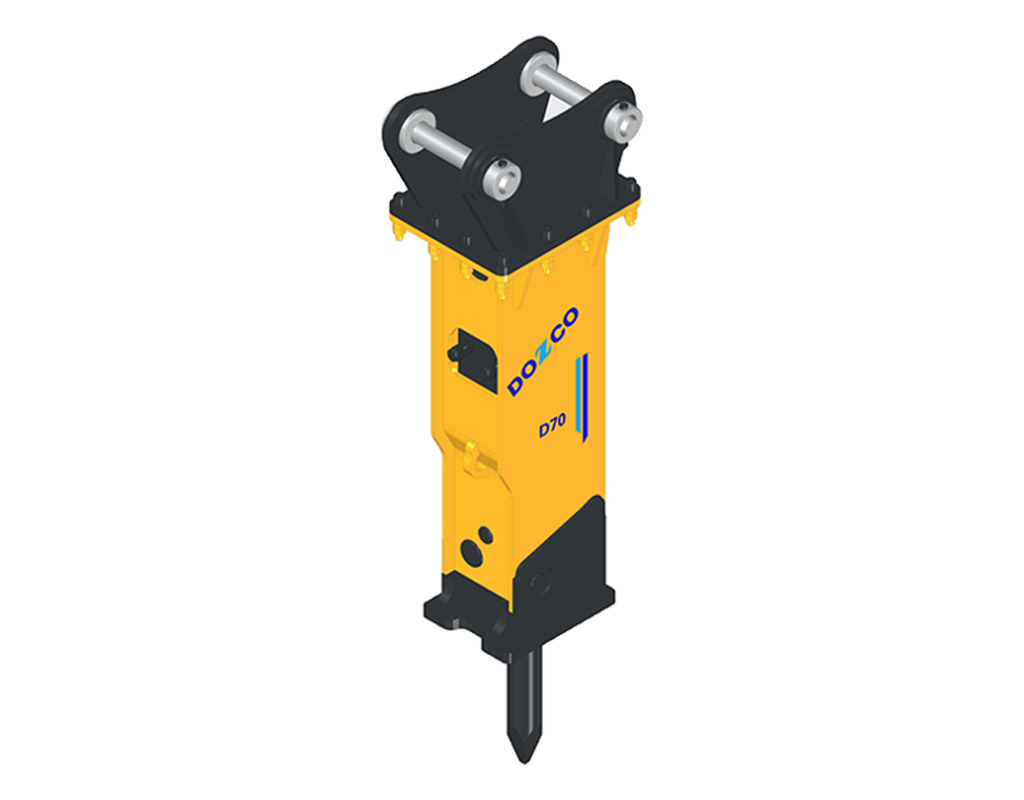

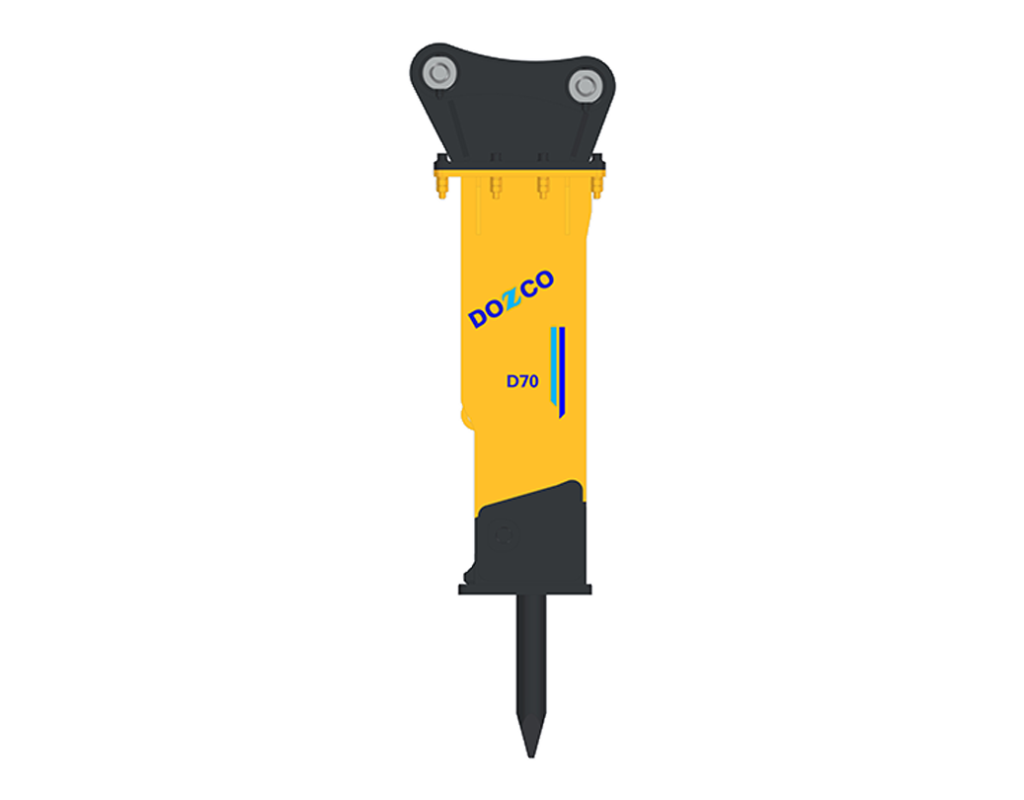

DOZCO D70 Rock Breaker
Overview
DOZCO D70 Rock Breaker
- Operating Weight 340 Kg
- Oil Flow 40-70 lpm
- Tool Diameter 70 mm
- Operating Pressure 110-140 bar
- Impact Rate 500-900 BPM
- Return Line Pressure 10 bar
DOZCO D70 Rock Breaker
- Product Overview
Product Overview
Product Overview
DOZCO D70 Rock Breaker is designed for consistent performance in medium to heavy-duty breaking applications. Suitable for excavators in the 3.0 to 7.0 ton class, it delivers strong impact energy for concrete demolition and hard rock breaking. Equipped with Anti-Blank Firing technology, D70 minimizes unnecessary hammering, reduces wear, and enhances overall machine protection, ensuring reliable operation and longer service life on demanding job sites.
| Specifications | Rock Breaker D70 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
|
|
||||||||
| Tool Diameter | 70 mm | ||||||||
| Tool Length | 700 mm | ||||||||
| Optimal Oil Flow | 40-70 lpm | ||||||||
| Setting Pressure | 170 bar | ||||||||
| Operating Pressure | 110-140 bar | ||||||||
| Return Line Pressure | 10 bar | ||||||||
| Impact Rate | 500-900 BPM | ||||||||
| Bottom Plate Thickness (HB) | 25 mm | ||||||||
| Hose | In & Out – 1/2″ | ||||||||
| Control Valve Type | Internal | ||||||||
| Applicable Carrier | 3.0-7.0 ton | ||||||||
| Anti Blank Firing (ABF) | Yes |
* The operating weight includes the MC + Body + Tool weight
* The above specifications are subject to change without prior notice for quality enhancement.
