DOZCO D53 Rock Breaker

Operating Weight 185 Kg
Oil Flow 25-50 lpm
Tool Diameter 53 mm
Operating Pressure 90-120 bar
Impact Rate 600-1100 BPM
Return Line Pressure 10 bar

Download Brochure

Request a Quote

DOZCO D53 Rock Breaker

Product Overview

Product Overview

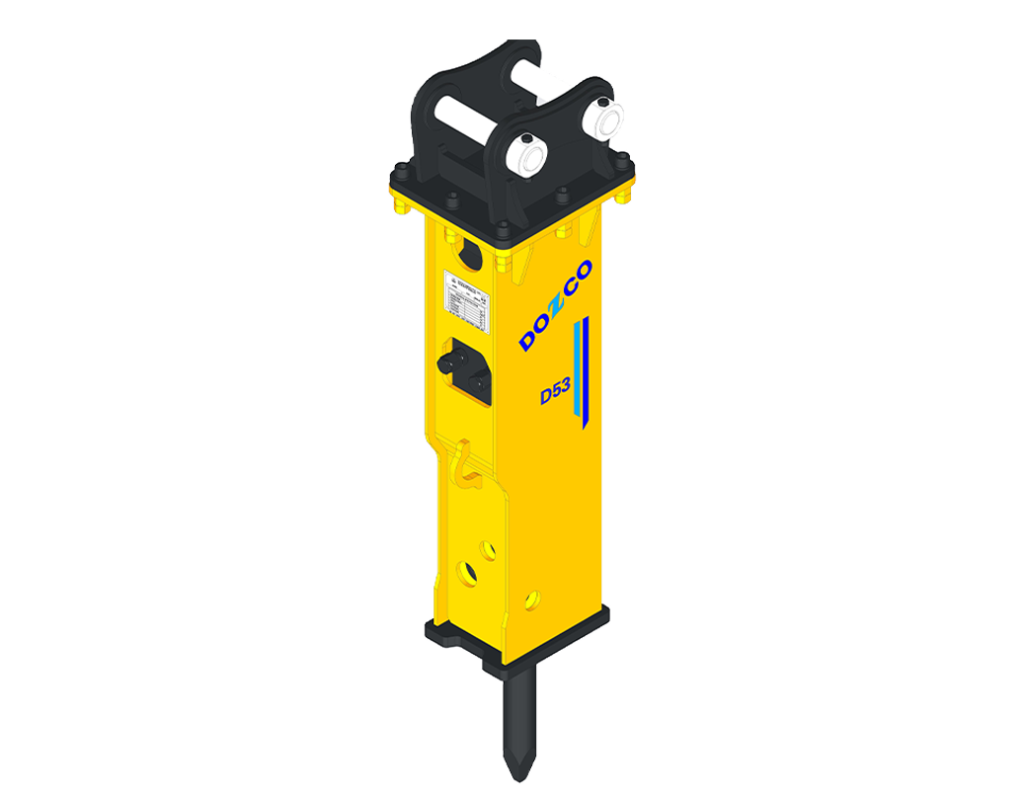

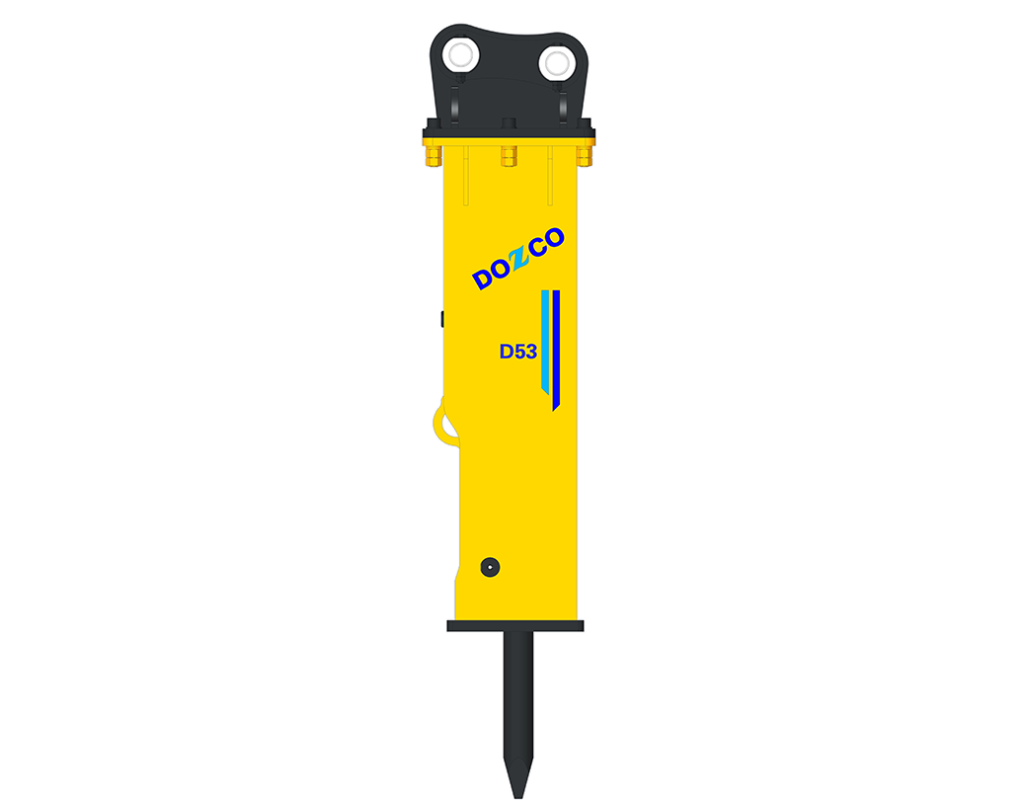

DOZCO D53 Rock Breaker

DOZCO D53 Rock Breaker is engineered to handle tougher breaking conditions with ease. Designed for 2.0 to 4.0 ton excavators, it provides strong impact energy for concrete demolition and hard material breaking. Anti-Blank Firing technology helps minimize internal stress and enhances reliability. With optimized oil flow and durable construction, D53 supports longer operating hours and reduced downtime.

Specifications

Rock Breaker D53

Operating Weight*	Box
Height (Incl. Tool)	Box – 3114 mm

	185 Kg
	1350 mm

Tool Diameter

53 mm

Tool Length

550 mm

Optimal Oil Flow

25-50 lpm

Setting Pressure

150 bar

Operating Pressure

90-120 bar

Return Line Pressure

10 bar

Impact Rate

600-1100 BPM

Bottom Plate Thickness (HB)

20 mm

Hose

In & Out – 1/2″

Control Valve Type

Internal

Applicable Carrier

2.0-4.0 ton

Anti Blank Firing (ABF)

Yes

* The operating weight includes the MC + Body + Tool weight
* The above specifications are subject to change without prior notice for quality enhancement.
