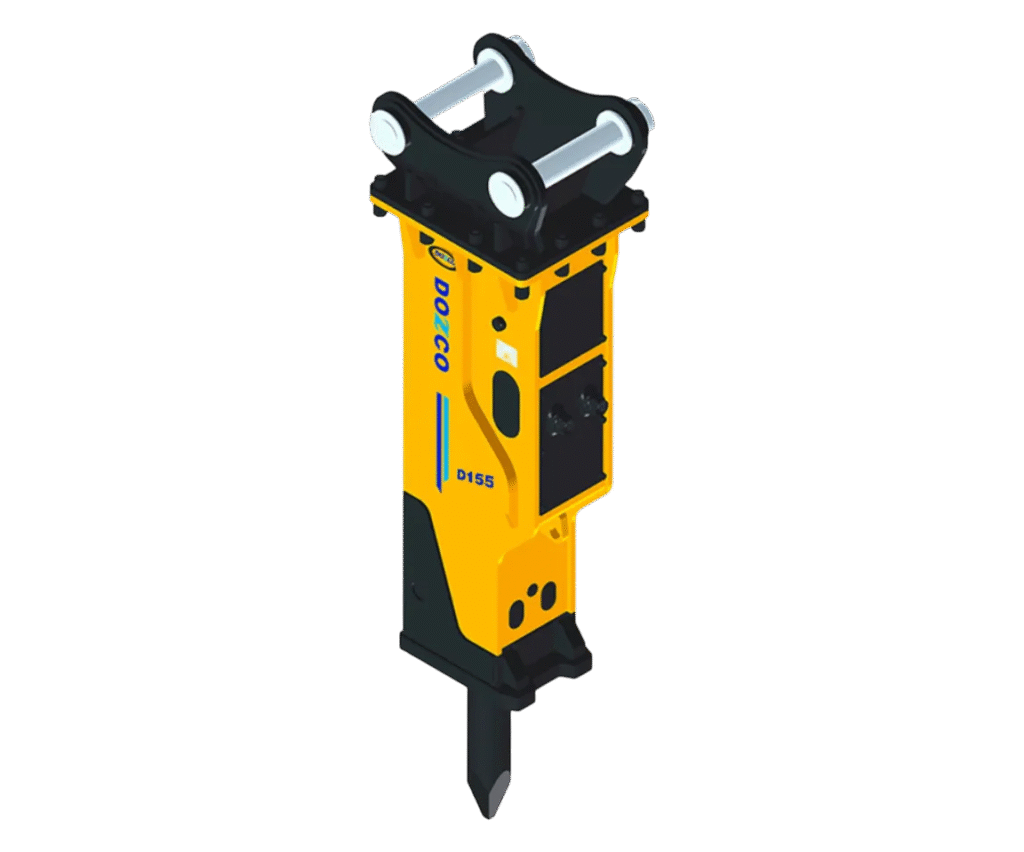

DOZCO D155 Rock Breaker
DOZCO D155 Rock Breaker
- Operating Weight 2550 kg
- Oil Flow 180 - 240 lpm
- Tool Diameter 155 mm
- Operating Pressure 160 – 190 bar
- Impact Rate 300 - 450 bpm
- Return Line Pressure 10 Bar
- Product Overview
Product Overview
Product Overview
DOZCO D155 Rock Breaker is engineered for demanding applications, including primary and secondary breaking, tunneling and reinforced concrete removal. Designed for 28.0 - 36.0-ton heavy range excavators, it delivers consistent impact power, ensuring efficient material handling and precise operations. Equipped with Anti-Blank Firing (ABF) technology, D155 prevents unnecessary firing when not in contact with material. This feature reduces wear, extends lifespan and enhances operational reliability. Built to withstand tough conditions D155 offers exceptional durability making it an essential tool for heavy-duty tasks.
| Specifications | Rock Breaker D155 | ||||||
|---|---|---|---|---|---|---|---|
|
|
||||||
| Tool Diameter | 155 mm | ||||||
| Tool Length | 1400 mm | ||||||
| Optimal Oil Flow | 180 – 240 lpm | ||||||
| Setting Pressure | 220 bar | ||||||
| Operating Pressure | 160 – 190 bar | ||||||
| Return Line Pressure | 10 Bar | ||||||
| Impact Rate | 300 – 450 BPM | ||||||
| Bottom Plate Thickness (HB) | 60 mm | ||||||
| Hose | In & Out – 1¼ inch | ||||||
| Control Valve Type | Internal | ||||||
| Applicable Carrier | 28.0 – 36.0 ton | ||||||
| Accumulator | Yes | ||||||
| Auto Greasing | Optional | ||||||
| Anti Blank Firing (ABF) | Yes |
* The operating weight includes the MC + Body + Tool weight
* The above specifications are subject to change without prior notice for quality enhancement.
