DOZCO D135 Rock Breaker

Operating Weight 1675 Kg
Oil Flow 120 – 180 lpm
Tool Diameter 135 mm
Operating Pressure 160 – 190 bar
Impact Rate 300 – 550 BPM
Return Line Pressure 10 bar

Download Brochure

Request a Quote

DOZCO D135 Rock Breaker

Product Overview

Product Overview

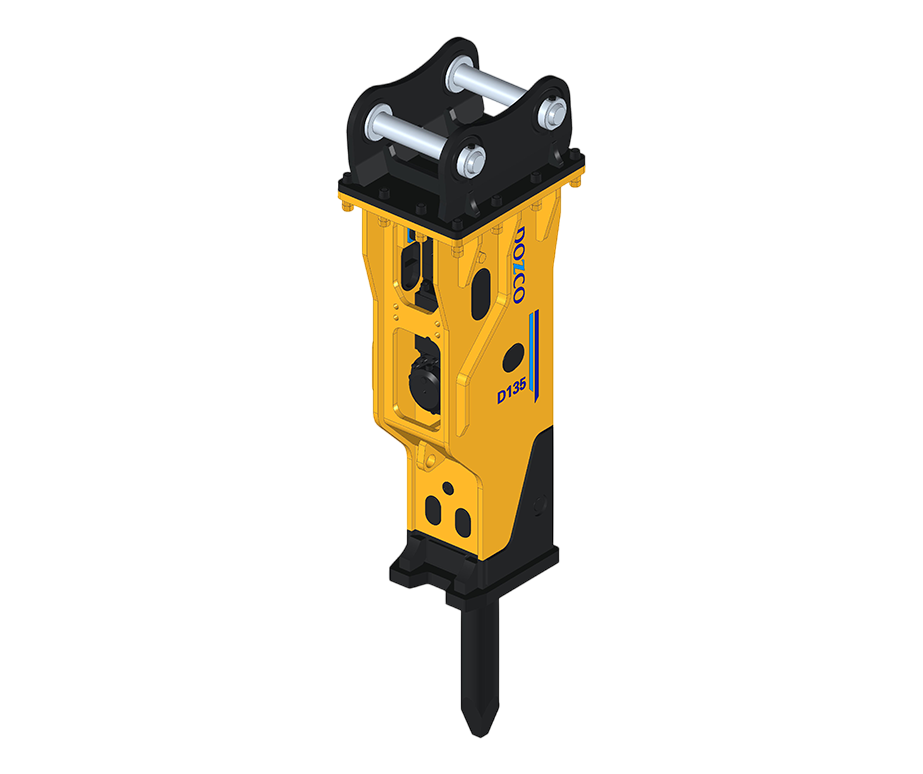

DOZCO D135 Rock Breaker

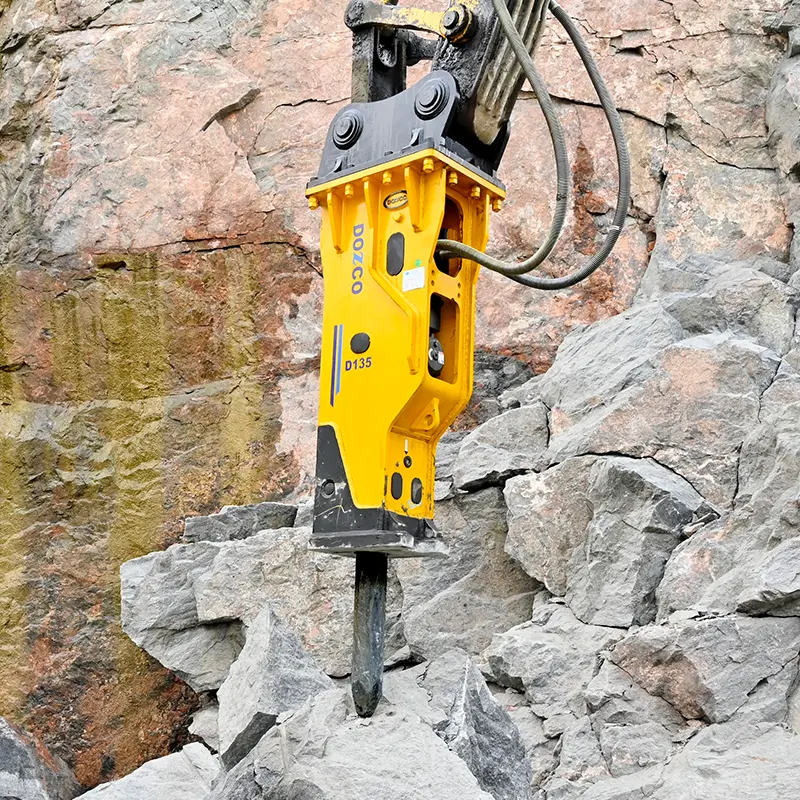

DOZCO Rock Breaker D135 is a robust attachment engineered for primary/secondary breaking and tunneling. Designed for excavators in the 10-26 tons class, it offers exceptional power and efficiency. With its reliable performance and precise control, the DOZCO Rock Breaker D135 is a trusted choice for demanding rock breaking applications. Whether you’re working on construction projects or involved in tunneling jobs, this attachment delivers superior performance and durability, ensuring efficient and effective rock breaking operations.

Specifications

Rock Breaker D135

Operating Weight*	Box
	Side
	Top Split
Height (Incl. Tool)	Box – 2674 mm
	Side – 2368 mm
	Top Split – 2714 mm

	1675 Kg
	1651 Kg
	1690 Kg
	Box – 2674 mm
	Side – 2368 mm
	Top Split – 2714 mm

Tool Diameter

135 mm

Tool Length

1200 mm

Optimal Oil Flow

120 – 180 lpm

Setting Pressure

220 bar

Operating Pressure

160 – 190 bar

Return Line Pressure

10 bar

Impact Rate

300 – 550 BPM

Bottom Plate Thickness (HB)

50 mm

Hose

In & Out – 1″

Control Valve Type

External

Applicable Carrier

18.0 – 26.0 ton

2 Stroke Control

Yes

Accumulator

Yes

Auto Greasing

Optional

Anti Blank Firing (ABF)

Yes

* The operating weight includes the MC + Body + Tool weight
* The above specifications are subject to change without prior notice for quality enhancement.
