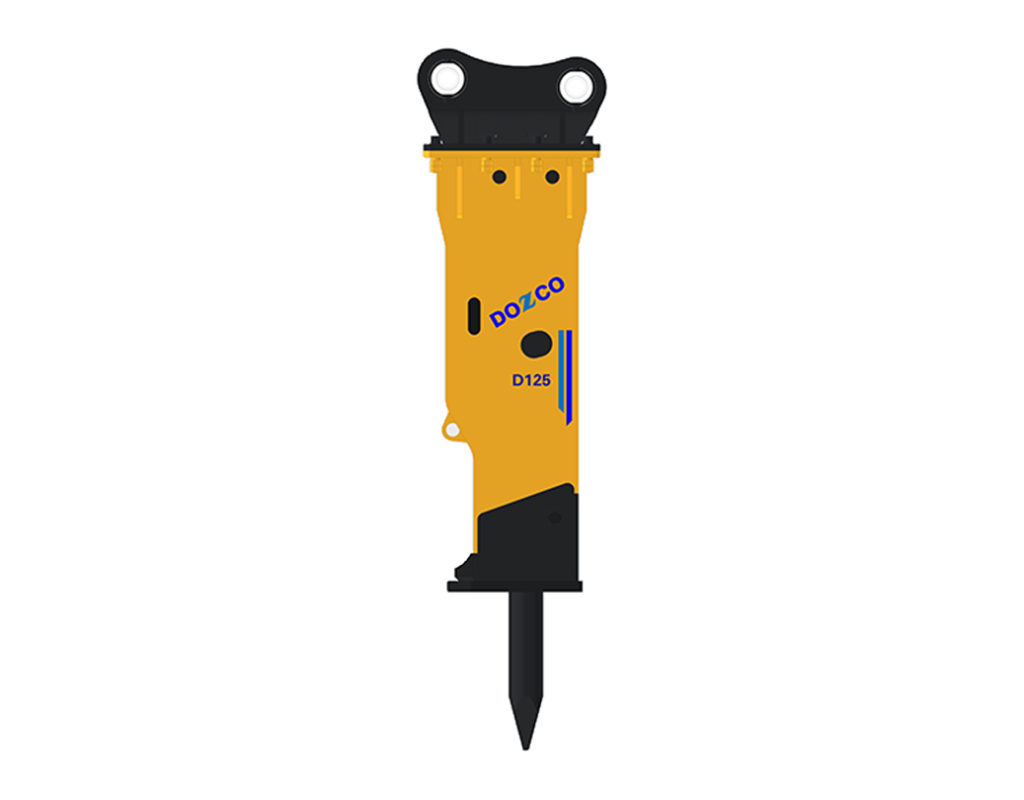

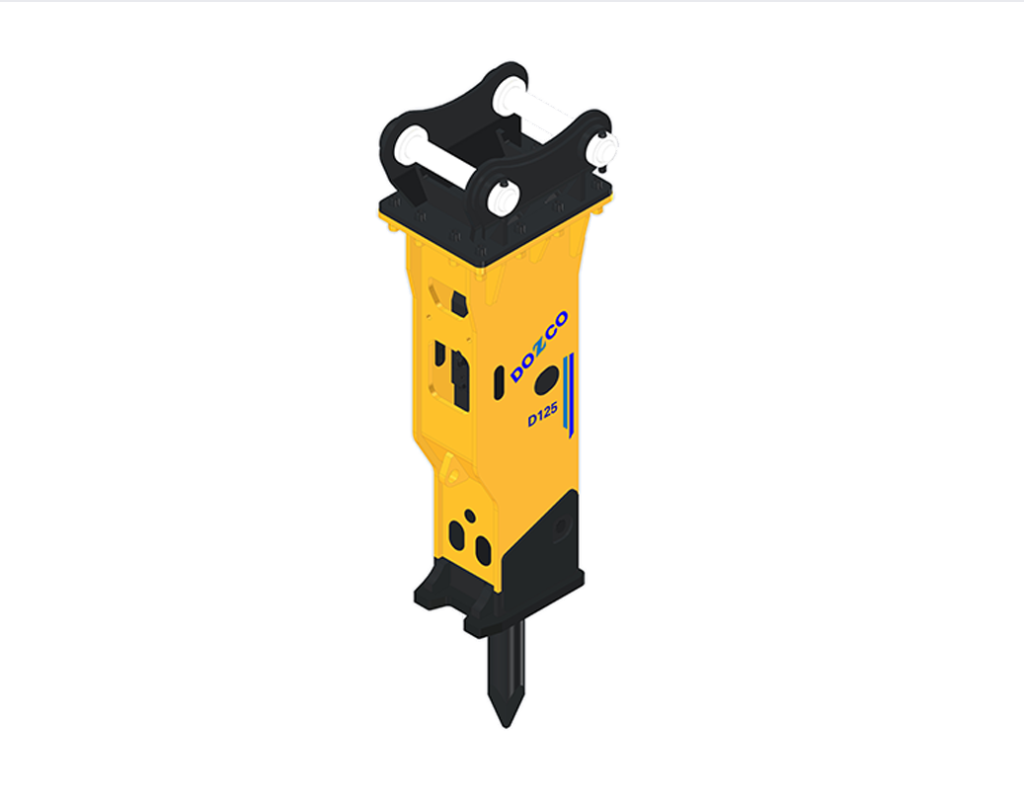

DOZCO D125 Rock Breaker
DOZCO D125 Rock Breaker
- Operating Weight 1370 Kg
- Oil Flow 90-120 lpm
- Tool Diameter 125 mm
- Operating Pressure 145-165 bar
- Impact Rate 390-750 BPM
- Return Line Pressure 10 bar
DOZCO D125 Rock Breaker
- Product Overview
Product Overview
DOZCO D125 Rock Breaker
DOZCO D125 Rock Breaker is built for demanding medium-range rock breaking and demolition applications. Designed for excavators in the 15.0 to 21.0 ton class, it delivers stable impact energy for quarrying, trenching, and reinforced concrete removal. Equipped with Anti-Blank Firing technology, D125 reduces unnecessary piston movement, minimizes internal wear, and improves service life. Its robust design ensures consistent output and dependable performance in continuous operations.
| Specifications | Rock Breaker D125 | ||||||
|---|---|---|---|---|---|---|---|
|
|
||||||
| Tool Diameter | 125 mm | ||||||
| Tool Length | 1100 mm | ||||||
| Optimal Oil Flow | 90-120 lpm | ||||||
| Setting Pressure | 200 bar | ||||||
| Operating Pressure | 145-165 bar | ||||||
| Return Line Pressure | 10 bar | ||||||
| Impact Rate | 390-750 BPM | ||||||
| Bottom Plate Thickness (HB) | 40 mm | ||||||
| Hose | In & Out – 1 | ||||||
| Control Valve Type | Internal | ||||||
| Applicable Carrier | 15.0-21.0 ton | ||||||
| 2 Stroke Control | Yes | ||||||
| Auto Greasing | Optional | ||||||
| Anti Blank Firing (ABF) | Yes |
* The operating weight includes the MC + Body + Tool weight
* The above specifications are subject to change without prior notice for quality enhancement.
