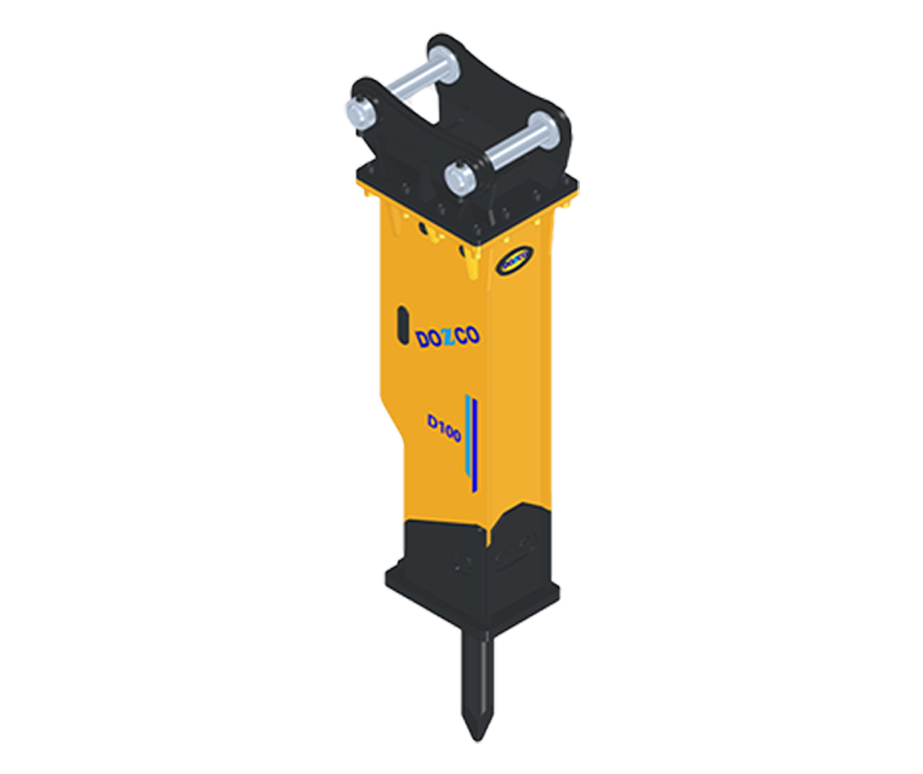

DOZCO D100 Rock Breaker
DOZCO D100 Rock Breaker
- Operating Weight 940 Kg
- Oil Flow 80 - 110 lpm
- Tool Diameter 100 mm
- Operating Pressure 140 - 170 bar
- Impact Rate 350 - 700 bpm
- Return Line Pressure 10 bar
DOZCO D100 Rock Breaker
- Product Overview
Product Overview
Product Overview

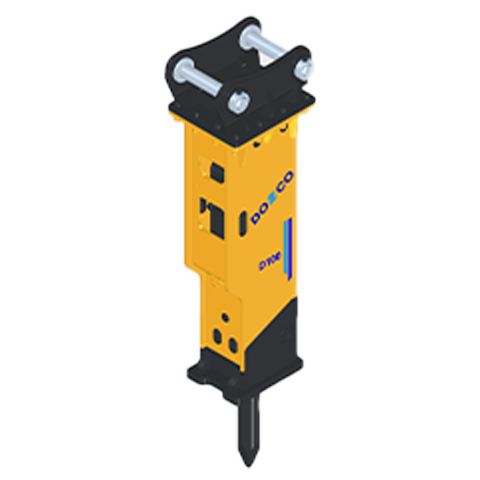

The DOZCO Rock Breaker D100 is a durable and high-performance hydraulic tool designed for medium-range excavators. Ideal for primary and secondary breaking, tunneling jobs and reinforced concrete breaking, it boasts robust construction for demanding tasks. The D100 delivers powerful impact energy with exceptional reliability, minimizing maintenance needs while maximizing productivity. Its rugged design and efficient operation make it an essential asset for tough job sites, ensuring longevity and superior performance in challenging conditions.
| Specifications | Rock Breaker D100 | ||||||
|---|---|---|---|---|---|---|---|
|
|
||||||
| Tool Diameter | 100 mm | ||||||
| Tool Length | 1000 mm | ||||||
| Optimal Oil Flow | 80 – 110 lpm | ||||||
| Setting Pressure | 200 bar | ||||||
| Operating Pressure | 140 – 170 bar | ||||||
| Return Line Pressure | 10 bar | ||||||
| Impact Rate | 350 – 700 BPM | ||||||
| Bottom Plate Thickness (HB) | 40 mm | ||||||
| Hose/In & Out | 3/4” | ||||||
| Control Valve Type | Internal | ||||||
| Applicable Carrier | 10.0 – 14.0 ton | ||||||
| Auto Greasing | Optional | ||||||
| Anti Blank Firing (ABF) | Yes |
* The operating weight includes the MC + Body + Tool weight
* The above specifications are subject to change without prior notice for quality enhancement.
